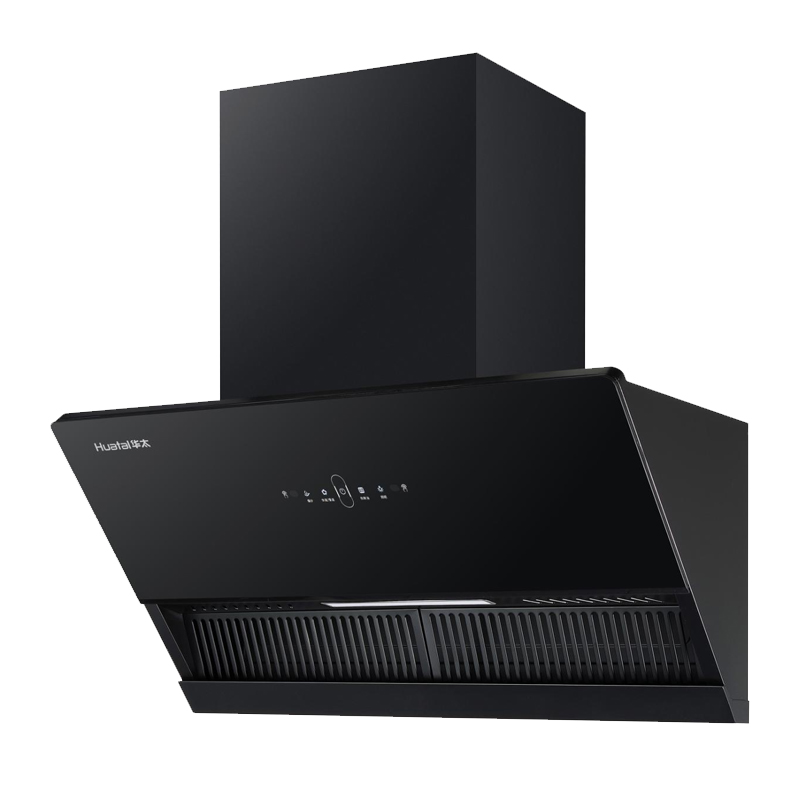

C851A2
  • 1、Exhaust air volume: 19.15m ³/min
  • 2、 Energy efficiency: Level 1
  • 3、 Standard wind pressure: 343.57Pa
  • 4、 Maximum wind pressure: 442.18Pa LED light ≤ 3W * 1
  • 5、 Switching power supply: five position tactile three speed with hot oil removal
  • 6、 Motor: 32 stack fully enclosed three speed first level energy-efficient motor
  • 7、 Smoke pipe: diameter 180mm * 1.8m
  • 8、 Noise level ≤ 70dB (A-sound functional level)
  • 9、 Oil removal power: 65W

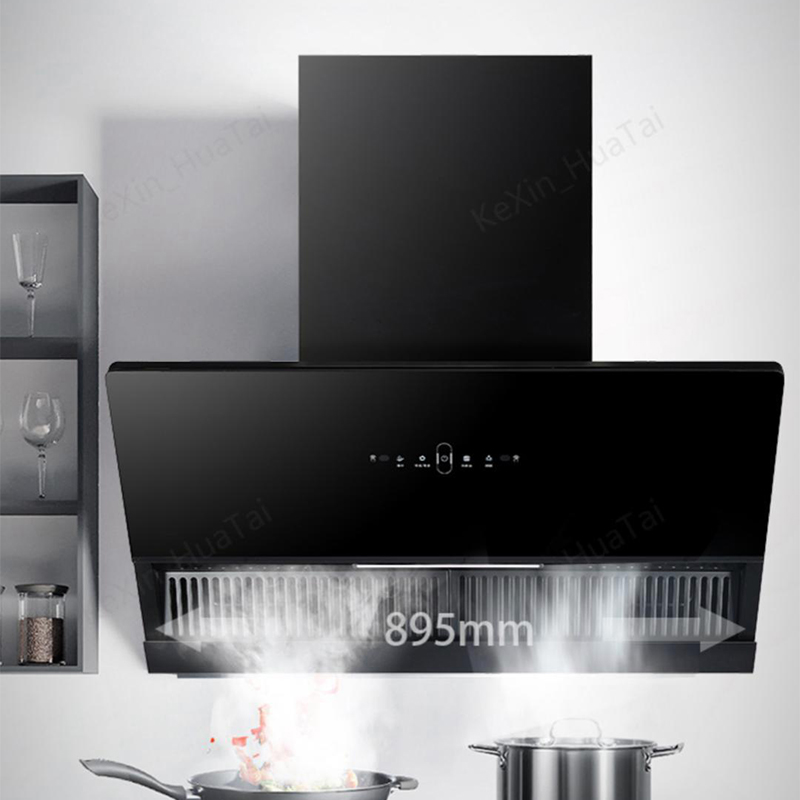

  • 10、 Dimensions: Width 900 x Depth 395 x Height 860mm
  • 11、 Dimensions of the fence: Width 400 x Depth 315 x Height 450mm
  • 12、 Packaging size: 945 × 460 × 680mm
  • 13、 Net weight: 20Kg
  • 14、 Gross weight: 24Kg
